★The compact shelving is a frame structure: it consists of a chassis, double columns, shelf plates and support plates, top plates, guard plates, door surfaces, transmission mechanisms, guide rails, shockproof devices, and dust and rodent-proof devices.
★The section type, shelf height, shelf width, number of layers and number of columns can be selected according to user needs.
★The track is made of 20X20 square steel, with galvanized and stainless steel pipe sleeves, which can be selected according to user needs.
★The bottom frame is generally segmented and assembled, with high processing accuracy, docking interchangeability, and convenient for safe transportation and installation.
★The transmission mechanism uses motorcycle chains and precision plane bearings, and the transmission is flexible and stable.
★The support plates of the shelves and buckles are stable and firm after combination, and the spacing between layers can be freely adjusted as needed. Each shelf is evenly loaded, 50Kg on one side and 100Kg on both sides. If the load needs to be increased, it can be specially designed.

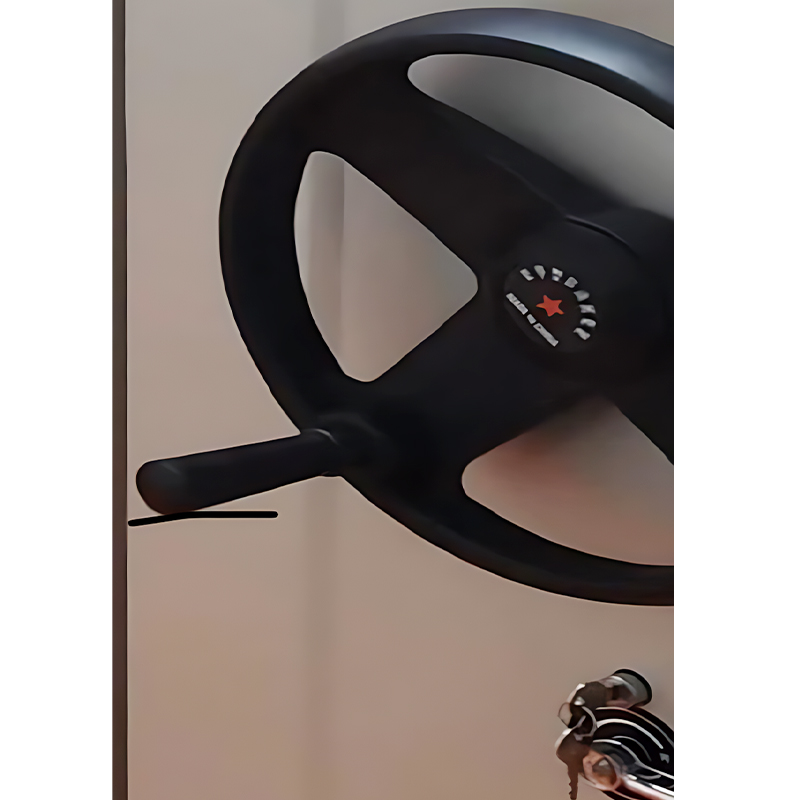

★Each column is equipped with a hand brake, and the side columns are equipped with locks for overall locking.
★The contact surface of each column is equipped with a buffer and sealing device, a dustproof plate on the top and a rodent-proof device on the bottom, which has good dustproof, rodent-proof, moisture-proof and fire-proof functions.
